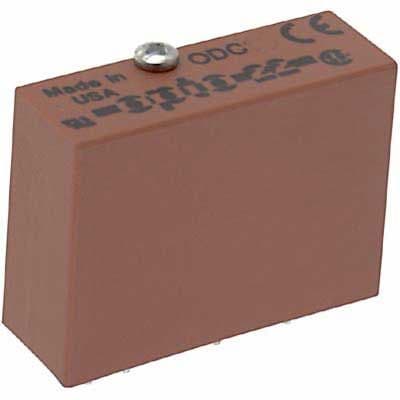

The ODC24A is a 24V digital relay module with a current rating of 1A and a maximum operating temperature of 70°C. It is approved by CSA and CE and has a voltage rating of 24V. The module is available in a rack, through hole, plug-in package with dimensions of 31.8mm in depth, 31.8mm in length, and 43.2mm in width. It operates within a temperature range of -30°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 ODC24A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Opto 22 ODC24A technical specifications.
| Approvals | CSA, CE |
| Package/Case | Module |
| Current Rating | 1A |
| Depth | 31.8mm |
| Input Current | 18mA |
| Length | 31.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Mount | Rack, Through Hole, Plug-In |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Voltage | 24V |
| Output Current | 1A |
| Output Type | Digital |
| Reach SVHC Compliant | No |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Width | 43.2mm |
| RoHS | Compliant |
