Technical Specifications
Opto 22 SNAP-AIPM technical specifications.
General
| Approvals | UL, CSA, CE |
| Package/Case | Module |
| Current Rating | 11A |
| Depth | 90.17mm |
| Height | 18.3mm |
| Input Current | 100mA |
| Length | 82.55mm |
| Manufacturer Series | SNAP |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | PCB, Snap in |
| Number of Channels | 2 |
| Operating Supply Voltage | 5V |
| DC Rated Voltage | 250V |
| Width | 18.29mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Opto 22 SNAP-AIPM Datasheet
Download the complete datasheet for Opto 22 SNAP-AIPM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

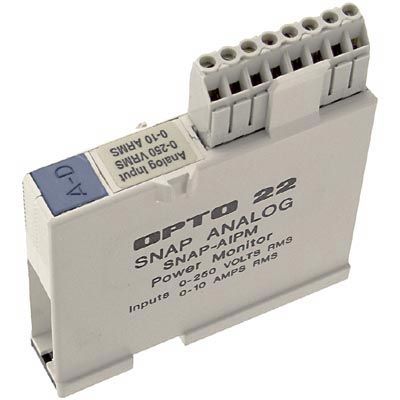

Product Images
