The SNAP-IDC5 is a 4-channel digital input relay module from Opto 22. It features 4kV isolation voltage and a DC rated voltage of 32V. The module has a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It is RoHS compliant and has a current rating of 400uA. The module is available in a module package and can be mounted on a PCB or snapped into a rack.
PackageModule
Current Rating400uA
MountingPCB, Snap in, Rack
Quick Jump:
Technical Specifications
Opto 22 SNAP-IDC5 technical specifications.
General
| Approvals | UL, CE |
| Package/Case | Module |
| Current Rating | 400uA |
| Depth | 0.197inch |
| Input Type | DIGITAL |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 3.25inch |
| Max Input Current | 50mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | PCB, Snap in, Rack |
| Number of Channels | 4 |
| Number of Inputs | 4 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 15ms |
| Turn-On Delay Time | 5ms |
| DC Rated Voltage | 32V |
| Width | 0.72inch |
Compliance
| RoHS | Compliant |
Datasheet
Opto 22 SNAP-IDC5 Datasheet
Download the complete datasheet for Opto 22 SNAP-IDC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

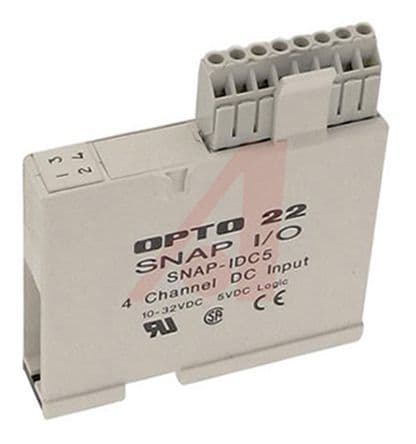

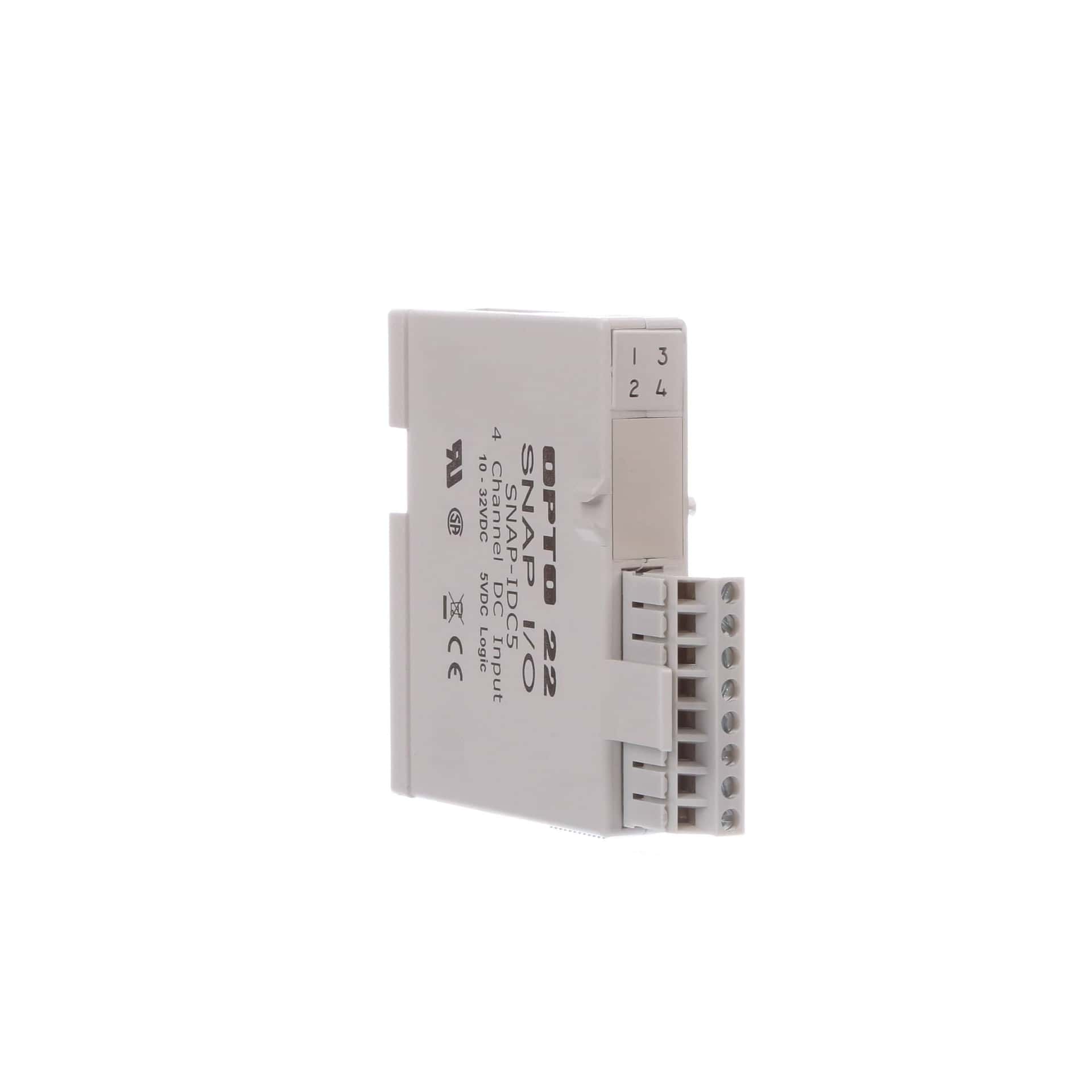

Product Images
