32-channel digital I/O relay module with 24V DC rated voltage and 150mA input current. Features 250mA output current, 5V operating supply voltage, and 100ms turn-on/turn-off delay. Mounts via rack, DIN rail, or snap-in. Operates between 0°C and 70°C. UL and CE approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Opto 22 SNAP-ODC-32-SRC datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

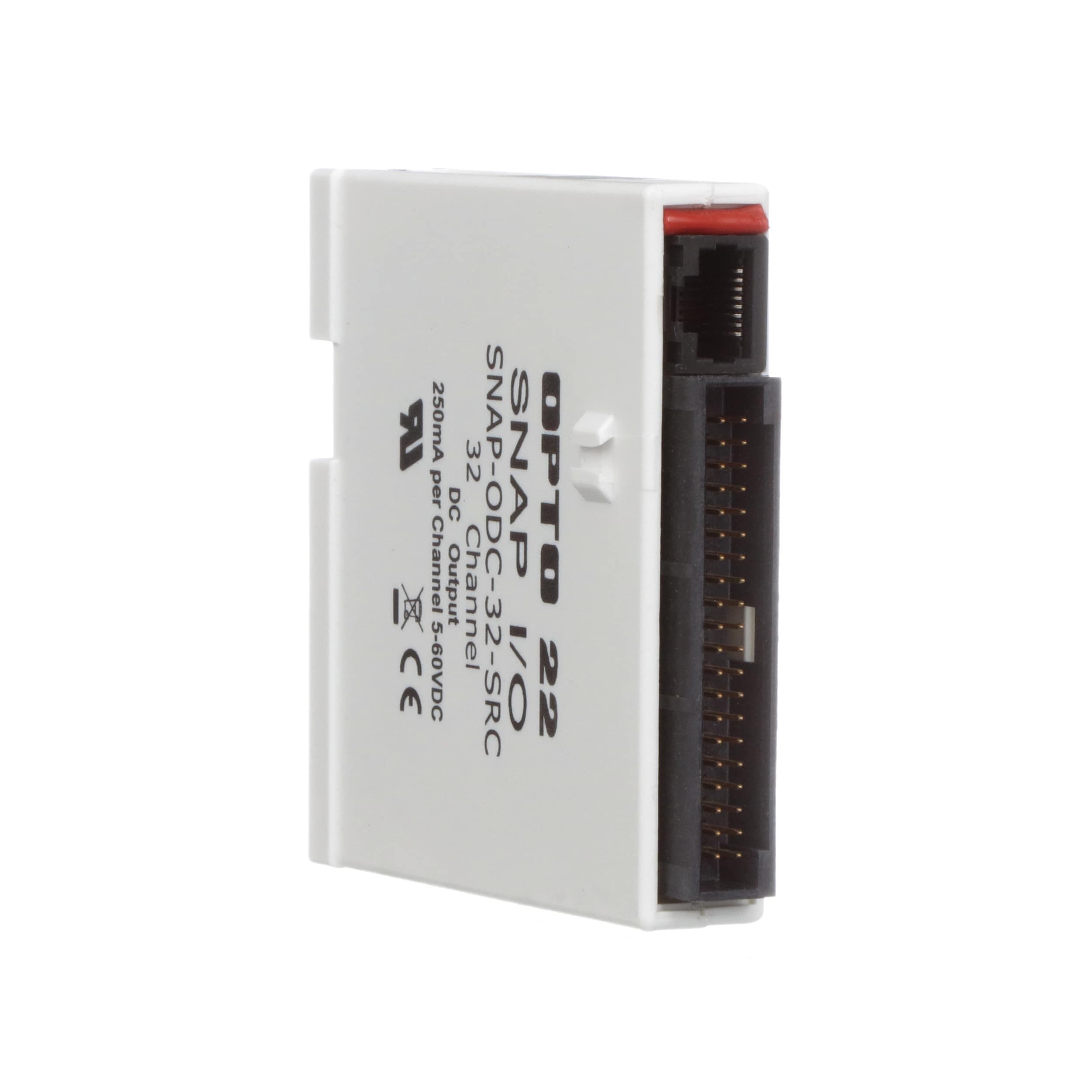

Opto 22 SNAP-ODC-32-SRC technical specifications.
| Approvals | UL, CE |
| Package/Case | Module |
| Current Rating | 150mA |
| Depth | 82.8mm |
| Input Current | 150mA |
| Input Type | DIGITAL |
| Lead Free | Lead Free |
| Length | 82.8mm |
| Manufacturer Series | SNAP |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Rack, DIN Rail, Snap in |
| Number of Channels | 32 |
| Number of I/Os | 32 |
| Number of Outputs | 32 |
| Operating Supply Voltage | 5V |
| Output Current | 250mA |
| Output Type | Digital |
| Reach SVHC Compliant | No |
| Turn-Off Delay Time | 100ms |
| Turn-On Delay Time | 100ms |
| Voltage Rating | 24V |
| DC Rated Voltage | 24V |
| Width | 82.55mm |
| RoHS | Compliant |
