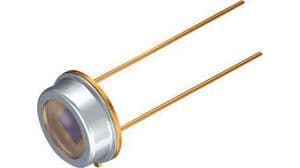

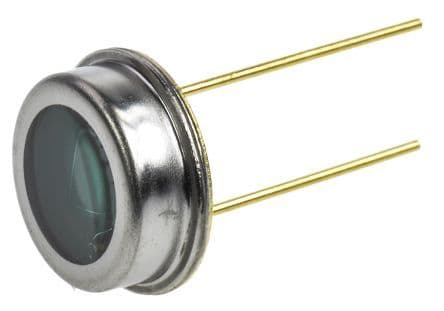

The BPW 21 phototransistor from Osram is a TO-5 packaged device with a maximum operating temperature of 80°C and a minimum operating temperature of -40°C. It has a maximum power dissipation of 250mW and a maximum reverse voltage of 10V. The device is designed for through hole or PCB mounting and is available in a package quantity of 40. The BPW 21 is RoHS compliant and has a response time of 1.5us and a responsivity of 0.34A/W.
Sign in to ask questions about the Osram BPW 21 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Osram BPW 21 technical specifications.
| Package/Case | TO-5 |
| Fall Time | 1500ns |
| Forward Current | 100mA |
| Height | 3.7mm |
| Length | 9.5mm |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Reverse Voltage (DC) | 10V |
| Mount | Through Hole, PCB |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Response Time | 1.5us |
| Responsivity | 0.34A/W |
| Reverse Breakdown Voltage | 10V |
| Reverse Voltage (DC) | 10V |
| RoHS Compliant | Yes |
| Viewing Angle | 110° |
| Wavelength | 550nm |
| Width | 9.5mm |
| RoHS | Compliant |
