NPN phototransistor with a 900nm peak sensitivity, designed for through-hole mounting in a T-1 (3mm) package. Features a 35V collector-emitter breakdown voltage and a maximum collector current of 15mA. Offers a 24° viewing angle and a fast 7µs fall time. Operates within a temperature range of -40°C to 100°C, with a maximum power dissipation of 165mW.
PackageT
MountingThrough Hole
PolarityNPN
Power165mW
Quick Jump:
Technical Specifications
Osram SFH 309 FA-4 technical specifications.
General
| Package/Case | T |
| Collector Emitter Breakdown Voltage | 35V |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Collector-emitter Voltage-Max | 35V |
| Diameter | 3.1mm |
| Fall Time | 7us |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Lens Style | Domed |
| Max Collector Current | 15mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 165mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Orientation | Top View |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Consumption | 165mW |
| Power Dissipation | 165mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 24° |
| Wavelength | 900nm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH 309 FA-4 Datasheet
Download the complete datasheet for Osram SFH 309 FA-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

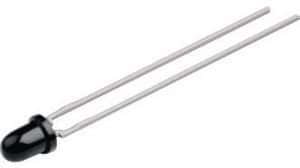

Product Images
