NPN phototransistor for optical sensing, featuring a 980nm infrared wavelength and a 120° viewing angle. This surface-mount component comes in a 2-pin PLCC package with a flat lens style. It offers a collector-emitter breakdown voltage of 35V, a maximum collector current of 15mA, and a power dissipation of 165mW. Operating across a temperature range of -40°C to 100°C, this RoHS compliant device has a fall time of 7µs.
PackagePLCC
MountingSurface Mount
PolarityNPN
Power165mW
Quick Jump:
Technical Specifications
Osram SFH 325 FA-3/4-Z technical specifications.
General
| Package/Case | PLCC |
| Collector Emitter Breakdown Voltage | 35V |
| Collector Emitter Voltage (VCEO) | 35V |
| Fall Time | 7us |
| Height | 4mm |
| Lead Free | Lead Free |
| Length | 3.6mm |
| Lens Style | Flat |
| Max Breakdown Voltage | 35V |
| Max Collector Current | 15mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 165mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Orientation | Side View |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 165mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIDELED |
| Viewing Angle | 120° |
| Wavelength | 980nm |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram SFH 325 FA-3/4-Z Datasheet
Download the complete datasheet for Osram SFH 325 FA-3/4-Z to view detailed technical specifications.
No datasheet is available for this part.

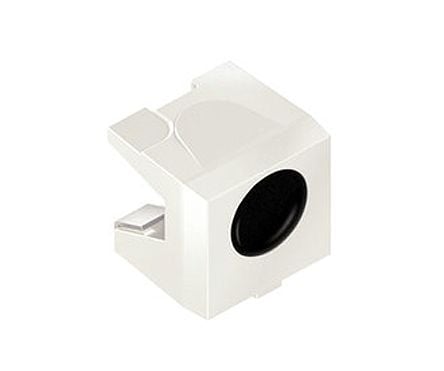

Product Images
