NPN phototransistor with a 900nm peak sensitivity, featuring a 35V collector-emitter breakdown voltage and a maximum collector current of 15mA. This top-view, through-hole mounted component offers a 24° viewing angle and a fast fall time of 8µs. It operates within a temperature range of -40°C to 100°C and has a power dissipation of 165mW. The device is RoHS compliant and lead-free.
PackageT
MountingThrough Hole
PolarityNPN
Power165mW
Quick Jump:
Technical Specifications
Osram SFH309FA-4/5 technical specifications.
General
Package/Case
T
Collector Emitter Breakdown Voltage
35V
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
35V
Fall Time
8us
Height
5.2mm
Lead Free
Lead Free
Length
4mm
Lens Style
Domed
Max Collector Current
15mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Power Dissipation
165mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Orientation
Top View
Packaging
Bulk
Polarity
NPN
Power Dissipation
165mW
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
24°
Wavelength
900nm
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Osram SFH309FA-4/5 Datasheet
Download the complete datasheet for Osram SFH309FA-4/5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

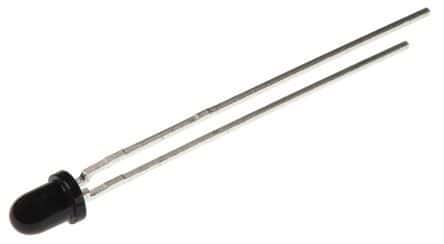

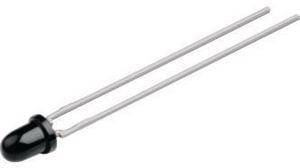

Product Images
