Aluminum polymer capacitor, 150µF capacitance, 10V DC rated voltage, and 20% tolerance. Features low ESR of 30mΩ and ripple current capability of 3.02A. Operates from -55°C to 105°C with a lifespan of 2000 hours. Packaged in tape and reel for surface mount applications.
PackageRadial
Voltage10V
Capacitance150uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic 10SVP150M technical specifications.
General
| Capacitance | 150uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 30mR |
| Height | 7.9mm |
| Lead Free | Lead Free |
| Leakage Current | 300uA |
| Length | 7.9mm |
| Life (Hours) | 2000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 3.02A |
| Ripple Current (AC) | 3.02A |
| RoHS Compliant | Yes |
| Series | OS-CON™, SVP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 10SVP150M Datasheet
Download the complete datasheet for Panasonic 10SVP150M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

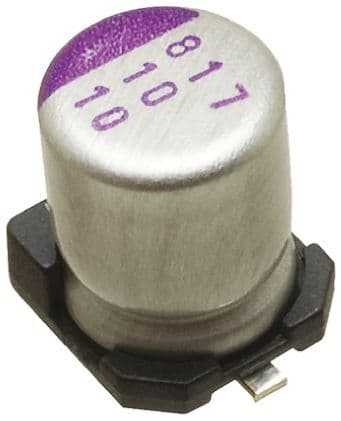

Product Images
