Surface mount aluminum electrolytic capacitor, polarized, wet aluminum construction. Features 68µF capacitance with ±20% tolerance, rated for 10V DC. Offers 23mΩ ESR, 300µA leakage current, and 2.54A ripple current. Operates across a -55°C to 105°C temperature range with a 2000-hour life expectancy. Packaged in tape and reel, this RoHS compliant component is designed for general applications.
PackageRadial
Voltage10V
Capacitance68uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic 10SVPC68MV technical specifications.
General
| Capacitance | 68uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 5mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 23mR |
| Height | 5.9mm |
| Height - Seated (Max) | 0.236inch |
| Leakage Current | 300uA |
| Length | 5.9mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 2.54A |
| Ripple Current (AC) | 2.54A |
| RoHS Compliant | Yes |
| Series | OS-CON, SVPC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 10SVPC68MV Datasheet
Download the complete datasheet for Panasonic 10SVPC68MV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

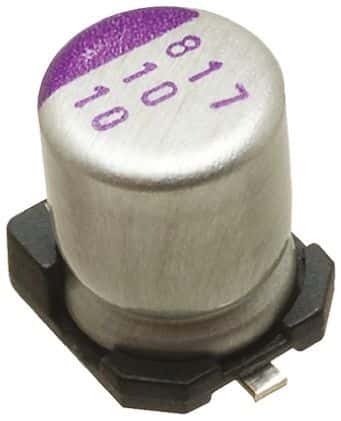

Product Images
