Polymer tantalum capacitor, 220µF capacitance, 10V DC rated voltage, 20% tolerance. Features 25mΩ ESR, 2.4A ripple current, and a maximum operating temperature of 105°C. Surface mount component in a 7343 metric case size (2917 imperial), measuring 7.3mm x 4.3mm x 2.8mm. RoHS compliant with lead-free termination.
Package2917
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Panasonic 10TPE220ML technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 25mR |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 0.118inch |
| Lead Free | Lead Free |
| Leakage Current | 220uA |
| Length | 7.3mm |
| Life (Hours) | 2000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 2.4A |
| RoHS Compliant | Yes |
| Series | POSCAP™ TPE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 10TPE220ML Datasheet
Download the complete datasheet for Panasonic 10TPE220ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

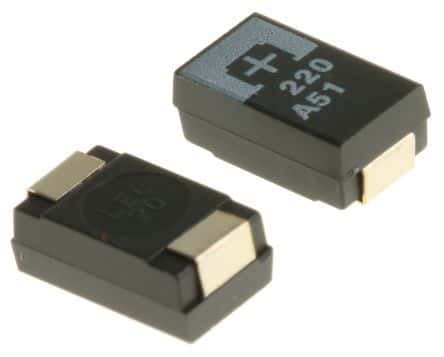

Product Images
