Polymer aluminum electrolytic capacitor with 220µF capacitance and 16V DC rated voltage. Features 13mΩ ESR, 4.15A ripple current capability, and a 105°C maximum operating temperature. Radial package with 3.5mm lead pitch, 8mm diameter, and 7mm length. Designed for through-hole mounting and supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance220uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic 16SEPC220MD+S technical specifications.
General
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 8mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 13mR |
| Height - Seated (Max) | 0.276inch |
| Lead Diameter | 0.6mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 500uA |
| Length | 7mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 4.15A |
| RoHS Compliant | Yes |
| Series | OS-CON, SEPC |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 16SEPC220MD+S Datasheet
Download the complete datasheet for Panasonic 16SEPC220MD+S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

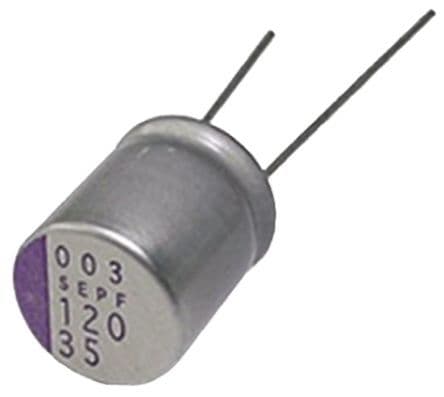

Product Images
