Aluminum Polymer Capacitor, 470µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a low 10mΩ ESR and 6.1A ripple current capability. Operates across a wide temperature range from -55°C to 105°C with a 2000-hour lifespan. Packaged in a 10mm diameter x 12.6mm height cylindrical radial case for surface mount applications, supplied on tape and reel.
PackageRadial
Voltage16V
Capacitance470uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic 16SVPE470M technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 10mR |
| Height | 12.6mm |
| Leakage Current | 1.504mA |
| Length | 12.6mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 6.1A |
| Ripple Current (AC) | 6.1A |
| RoHS Compliant | Yes |
| Series | OS-CON™, SVPE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 16SVPE470M Datasheet
Download the complete datasheet for Panasonic 16SVPE470M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

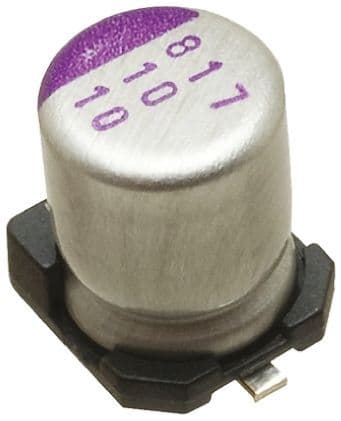

Product Images
