Polymer Tantalum Capacitor, 33µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a 7343-20 (2917) SMD case with dimensions of 7.3mm (L) x 4.3mm (W) x 1.9mm (H). Offers 0.07 Ohm ESR and a maximum operating temperature of 105°C. This general-purpose component is supplied on tape and reel.
Package2917
Voltage16V
Capacitance33uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic 16TQC33MYFD technical specifications.
General
| Capacitance | 33uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Construction | Flat |
| Depth | 4.3mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 70mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 52.8uA |
| Length | 7.3mm |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.4A |
| RoHS Compliant | Yes |
| Series | POSCAP™ TQC |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 16TQC33MYFD Datasheet
Download the complete datasheet for Panasonic 16TQC33MYFD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

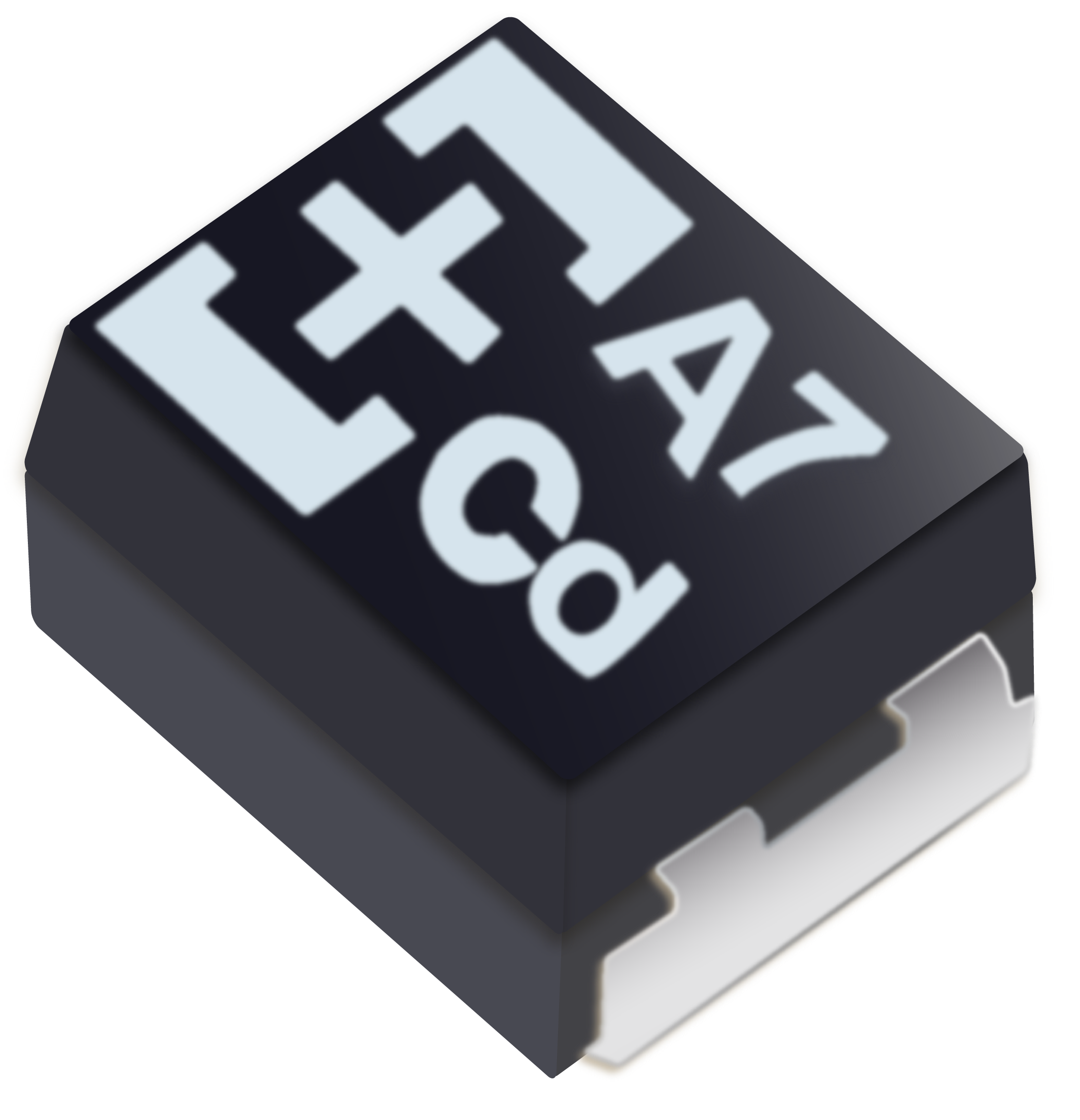

Product Images
