Polymer Tantalum Capacitor, 47µF capacitance, 16V DC rated voltage, and 20% tolerance. Features a low ESR of 40mΩ, 1.8A ripple current, and a maximum operating temperature of 105°C. Surface mountable in a 7343 metric case code (2917 imperial), measuring 7.3mm x 4.3mm x 1.9mm. RoHS compliant and lead-free.
Package2917
Voltage16V
Capacitance47uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic 16TQC47MW technical specifications.
General
Capacitance
47uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
40mR
Features
General Purpose
Height
1.9mm
Lead Free
Lead Free
Leakage Current
75.2uA
Length
7.3mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.8A
RoHS Compliant
Yes
Series
POSCAP™ TQC
Termination
SMD/SMT
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
4.3mm
Compliance
RoHS
Compliant
Datasheet
Panasonic 16TQC47MW Datasheet
Download the complete datasheet for Panasonic 16TQC47MW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

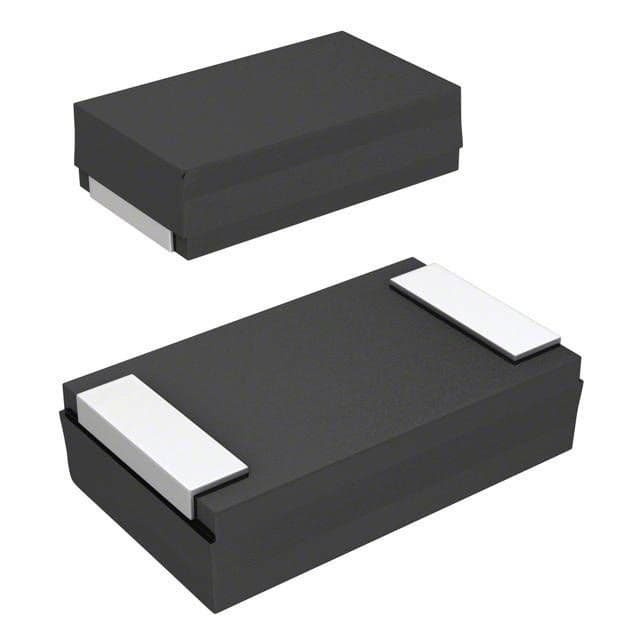

Product Images
