High-performance aluminum polymer capacitor with 22µF capacitance and 35VDC voltage rating. Features low ESR of 35mΩ and high ripple current capability of 2.6A. Designed for through-hole mounting with a radial package measuring 6.3mm diameter and 6mm height. Operates across a wide temperature range from -55°C to 105°C with a rated life of 5000 hours. RoHS compliant.
PackageRadial
Voltage35V
Capacitance22uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic 35SEPF22M technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 6.3mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 35mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Lead Diameter | 0.5mm |
| Lead Pitch | 2.5mm |
| Leakage Current | 154uA |
| Length | 6mm |
| Life (Hours) | 5000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 2.6A |
| RoHS Compliant | Yes |
| Series | OS-CON, SEPF |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 35SEPF22M Datasheet
Download the complete datasheet for Panasonic 35SEPF22M to view detailed technical specifications.
No datasheet is available for this part.

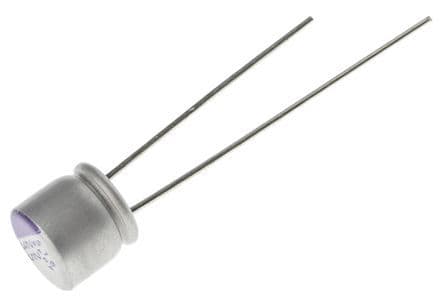

Product Images
