Aluminum Polymer Capacitor, 100µF capacitance, 4V DC rated voltage, and 20% tolerance. Features 40mΩ ESR, 1.81A ripple current capability, and a maximum operating temperature of 105°C. Radial package with 2.5mm lead pitch, 6.3mm diameter, and 6mm height. Designed for through-hole mounting with a 3000-hour life rating.
PackageRadial
Voltage4V
Capacitance100uF
Voltage Rating4V
Quick Jump:
Technical Specifications
Panasonic 4SEP100M technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Diameter | 6.3mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 40mR |
| Height | 6mm |
| Height - Seated (Max) | 0.236inch |
| Lead Diameter | 0.45mm |
| Lead Free | Lead Free |
| Lead Pitch | 2.5mm |
| Leakage Current | 200uA |
| Length | 6mm |
| Life (Hours) | 3000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Ripple Current | 1.81A |
| RoHS Compliant | Yes |
| Series | OS-CON, SEP |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 4V |
| Voltage Rating | 4V |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 4SEP100M Datasheet
Download the complete datasheet for Panasonic 4SEP100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

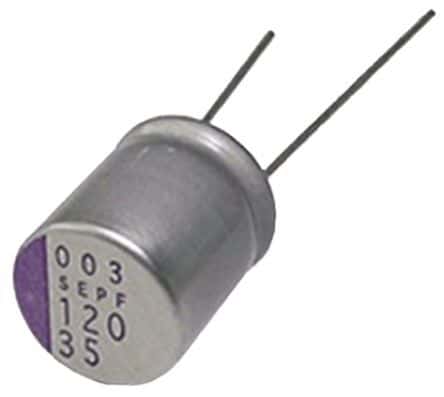

Product Images
