Aluminum Polymer Capacitor, 470µF capacitance, 6.3V DC rated voltage, and 20% tolerance. Features low ESR of 25mΩ, high ripple current capability of 3.7A, and a maximum operating temperature of 105°C. Constructed with a cylindrical polymer material, this surface mount component offers a 2000-hour lifespan and operates within a -55°C to 105°C temperature range. Dimensions are 10mm diameter and 7.9mm height, supplied in tape and reel packaging.
PackageRadial
Voltage6.3V
Capacitance470uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic 6SVP470MX technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 10mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 25mR |
| Height | 7.9mm |
| Leakage Current | 592uA |
| Length | 7.9mm |
| Life (Hours) | 2000Hour |
| Material | Polymer |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Ripple Current | 3.7A |
| Ripple Current (AC) | 3.7A |
| RoHS Compliant | Yes |
| Series | OS-CON™, SVP |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 6SVP470MX Datasheet
Download the complete datasheet for Panasonic 6SVP470MX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

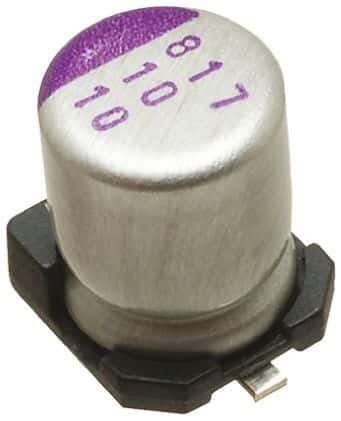

Product Images
