Polymer Tantalum Capacitor, 100µF capacitance, 6.3V DC rated voltage, with 20% tolerance. Features low 25mΩ ESR and 105°C maximum operating temperature. Surface mountable in a 3528 (B2) case size, measuring 3.5mm x 2.8mm x 1.9mm. General purpose, lead-free, and RoHS compliant.
PackageMolded
Voltage6.3V
Capacitance100uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Panasonic 6TPE100MPB technical specifications.
General
| Capacitance | 100uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3528 |
| Package/Case | Molded |
| Construction | Flat |
| Depth | 2.8mm |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 25mR |
| Features | General Purpose |
| Height | 1.9mm |
| Lead Free | Lead Free |
| Leakage Current | 63uA |
| Length | 3.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 1.6A |
| RoHS Compliant | Yes |
| Series | POSCAP™ TPE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 6.3V |
| Voltage Rating | 6.3V |
| DC Rated Voltage | 6.3V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic 6TPE100MPB Datasheet
Download the complete datasheet for Panasonic 6TPE100MPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

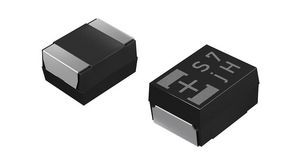

Product Images
