SPDT snap action switch featuring a roller lever actuator. Rated for 2A at 250VAC and 125VDC, with a contact material of silver. Offers a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles. Mounting options include screw and wire leads, with a straight orientation. Operating force is 0.39N, and the switch is IP67 rated for waterproof and dust-tight applications.
Package125
Current Rating2A
MountingChassis Mount, Screw, Wire
Quick Jump:
Technical Specifications
Panasonic ABS161640 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Package/Case | 125 |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Current Rating | 2A |
| Differential Travel | 0.02inch |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Mechanical Life | 1000000Cycles |
| Mount | Chassis Mount, Screw, Wire |
| Operating Force | 0.39N |
| Operating Position | 0.571inch |
| Orientation | Straight |
| Overtravel | 0.032inch |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pretravel | 0.1inch |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ABS |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ABS161640 Datasheet
Download the complete datasheet for Panasonic ABS161640 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

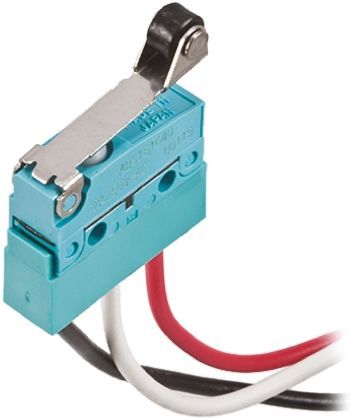

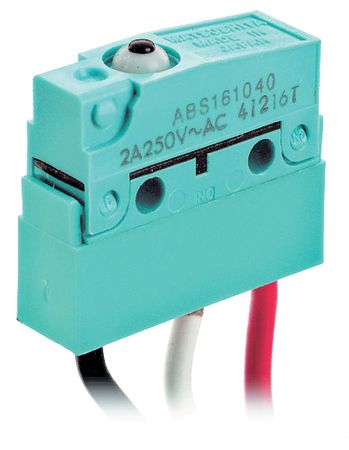

Product Images
