Panasonic
ADP5161
Strain Guage Sensor, Gage, 0Psi Min, 72.51Psi Max, 1.25%, 0.50-4.50V, Rectangular, Through Hole Mount, DIP-6
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic ADP5161 technical specifications.
General
Accuracy
1.25%
Package/Case
DIP
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Pressure
145.04PSI
Mount
Through Hole, PCB
Nominal Supply Current
10mA
Operating Pressure
72.52PSI
Operating Supply Voltage
5V
Output Type
Analog Voltage
Output Voltage
4.55V
Package Quantity
100
Packaging
Rail/Tube
Port Style
Barbless
Pressure Type
Gauge
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
PC Pin
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Panasonic ADP5161 Datasheet
Download the complete datasheet for Panasonic ADP5161 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

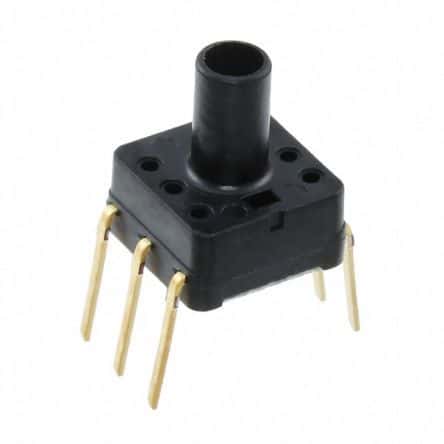

Product Images
