SPST-NO power relay with a 6VDC coil voltage and 8A contact current rating. Features a single coil latching mechanism, 180 Ohm coil resistance, and 33.3mA coil current. Contact material is Tin/Silver, with a maximum AC voltage rating of 250V. Operate and release times are 15ms, with an operating temperature range of -40°C to 85°C. Dimensions are 24x10x18.8mm, with PC pin termination.
Power200mW
Quick Jump:
Technical Specifications
Panasonic ADW1106W technical specifications.
General
| Coil Current | 33.3mA |
| Coil Power | 200mW |
| Coil Resistance | 180R |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Carton |
| Power Consumption | 200mW |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 15ms |
| RoHS Compliant | Yes |
| Series | DW-H |
| Switching Current | 8A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 8g |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ADW1106W Datasheet
Download the complete datasheet for Panasonic ADW1106W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

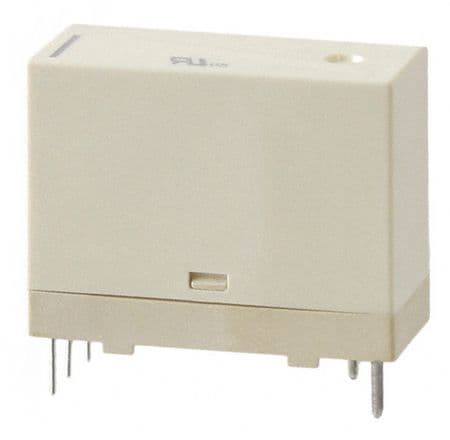

Product Images
