SPST-NO power relay featuring a 5VDC dual-coil latching mechanism. Rated for 8A switching current at 250VAC, with a contact material of tin and silver. Coil specifications include 80mA current, 400mW power consumption, and 62.5Ω resistance. Operates within a temperature range of -40°C to 85°C, with a 15ms operate and release time. This RoHS compliant component has PC pin termination and measures 24x10x18.8mm.
Power400mW
Quick Jump:
Technical Specifications
Panasonic ADW1205W technical specifications.
General
| Coil Current | 80mA |
| Coil Power | 400mW |
| Coil Resistance | 62.5R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Depth | 10mm |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Length | 24mm |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Carton |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 15ms |
| RoHS Compliant | Yes |
| Series | ADW1 |
| Switching Current | 8A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 8g |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ADW1205W Datasheet
Download the complete datasheet for Panasonic ADW1205W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

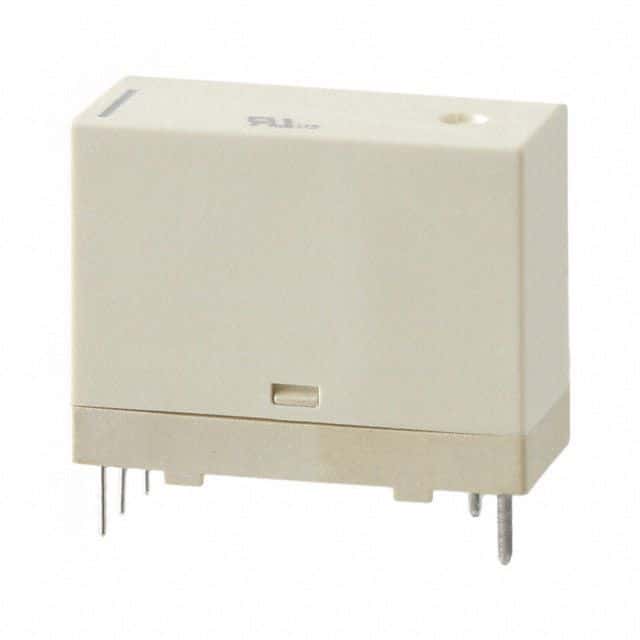

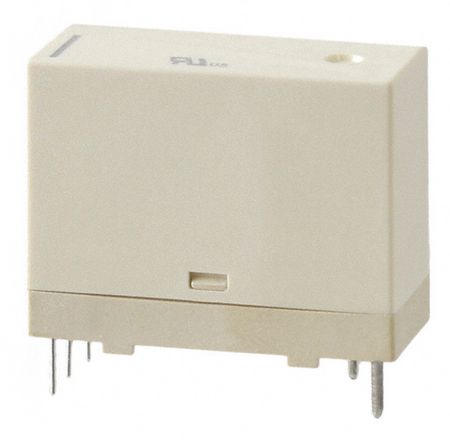

Product Images
