SPST-NO power relay with a 6VDC dual-coil latching mechanism. Features an 8A contact current rating with Tin/Silver contacts, suitable for general-purpose applications. Operates within a -40°C to 85°C temperature range, offering 250VAC maximum voltage rating. Termination is via PC pins, with a compact footprint of 24x10x18.8mm and a weight of 8g. RoHS compliant and IP54 rated for enhanced environmental protection.
Power400mW
Quick Jump:
Technical Specifications
Panasonic ADW1206W technical specifications.
General
| Coil Current | 66.7mA |
| Coil Power | 400mW |
| Coil Resistance | 90R |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Height | 18.8mm |
| Lead Free | Lead Free |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Carton |
| Power Consumption | 400mW |
| Ratings | IP54 |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 15ms |
| RoHS Compliant | Yes |
| Series | DW-H |
| Switching Current | 8A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 8g |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ADW1206W Datasheet
Download the complete datasheet for Panasonic ADW1206W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

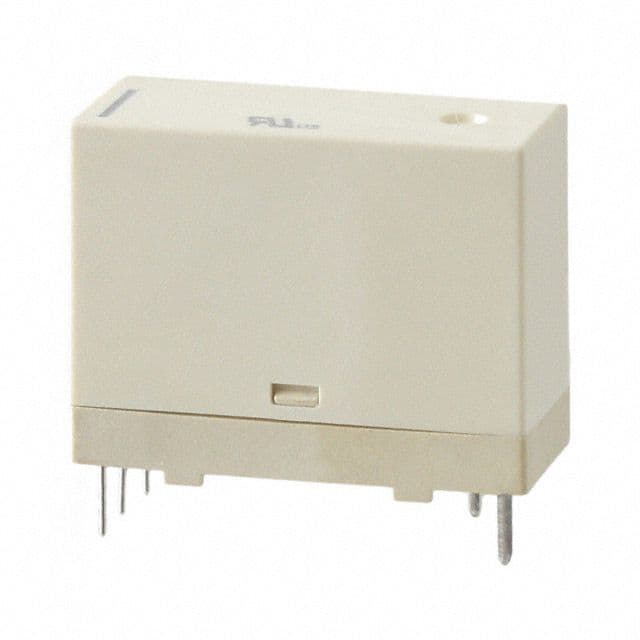

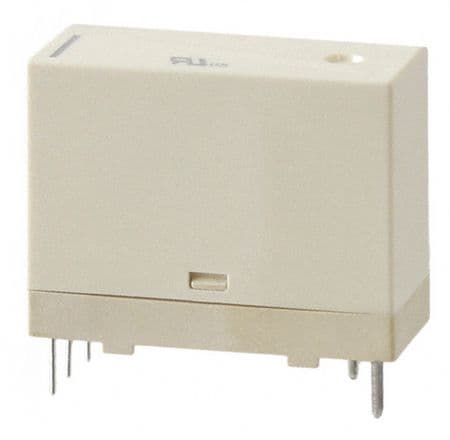

Product Images
