General purpose electromechanical relay, SPST, momentary, featuring a 12VDC coil with 375mA coil current and 4.5W coil power. This relay boasts an 80A contact current rating and a 400VDC contact voltage rating, suitable for high voltage applications. Designed for chassis mount with flanges and surface mount options, it offers screw termination and a long operational life of 200,000 hours. Operating temperature range is -40°C to 80°C.
MountingChassis Mount, Flanges, Surface Mount
Power4.5W
Quick Jump:
Technical Specifications
Panasonic AEP18012 technical specifications.
General
| Application(s) | HIGH VOLTAGE |
| Coil Current | 375mA |
| Coil Power | 5W |
| Coil Resistance | 320R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 80A |
| Contact Type | 1 maker |
| Depth | 40mm |
| Height | 79mm |
| Lead Free | Lead Free |
| Length | 82.25mm |
| Life (Hours) | 200000Hour |
| Max Current Rating | 80A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 400V |
| Mount | Chassis Mount, Flanges, Surface Mount |
| Number of Poles | 1 |
| Operate Time | 50ms |
| Package Quantity | 1 |
| Packaging | Case |
| Power Consumption | 4.5W |
| Reach SVHC Compliant | No |
| Release Time | 30ms |
| RoHS Compliant | Yes |
| Series | AEP |
| Switching Current | 80A |
| Termination | Screw |
| Throw Configuration | SPST |
| Weight | 400g |
| Width | 26mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AEP18012 Datasheet
Download the complete datasheet for Panasonic AEP18012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

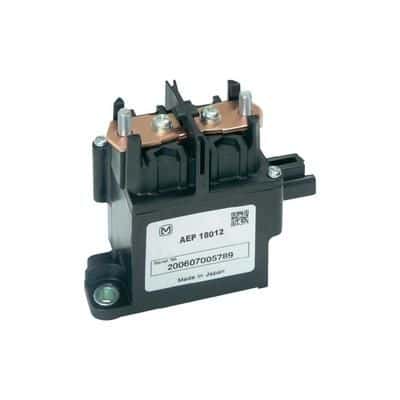

Product Images
