DPCO signal relay for general purpose applications, featuring a 4.5VDC non-latching coil with 31mA coil current and 140mW coil power. Offers 2A contact current rating with gold/silver contact material and DPDT throw configuration. Through-hole PCB mountable with a 2.2mm pitch, this relay operates within a -40°C to 85°C temperature range and has a 125V AC / 110V DC voltage rating. RoHS compliant and IP67 rated.
PackageDIP
Current Rating1A
MountingThrough Hole, PCB
Power140mW
Quick Jump:
Technical Specifications
Panasonic AGQ-2004H technical specifications.
General
| Application(s) | GENERAL PURPOSE |
| Approvals | UL, CSA |
| Package/Case | DIP |
| Coil Current | 31mA |
| Coil Power | 140mW |
| Coil Resistance | 145R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 4.5V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Type | 2 change-overs |
| Current Rating | 1A |
| Depth | 7.2mm |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Length | 10.6mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 110V |
| Mount | Through Hole, PCB |
| Number of Poles | 2 |
| Operate Time | 4ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Pitch | 2.2mm |
| Power Consumption | 140mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Type | Telecom |
| Release Time | 4ms |
| RoHS Compliant | Yes |
| Series | AGQ |
| Switching Current | 1A |
| Termination | PC Pin |
| Test Voltage | 1.5kV |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 110V |
| Weight | 1g |
| Width | 7.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AGQ-2004H Datasheet
Download the complete datasheet for Panasonic AGQ-2004H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

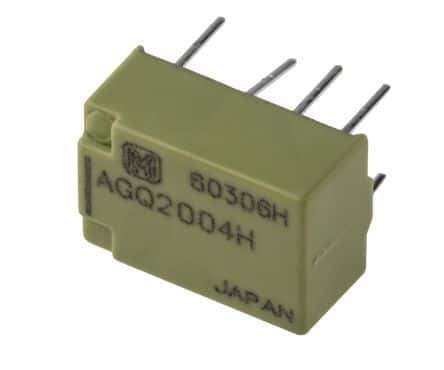

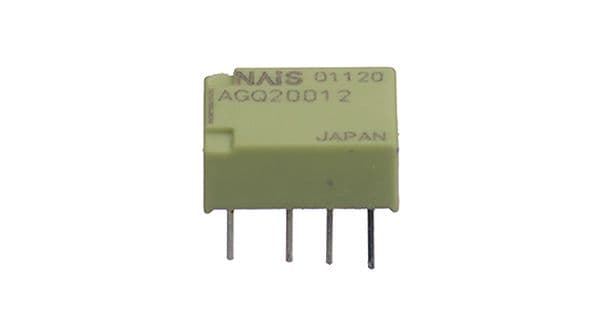

Product Images
