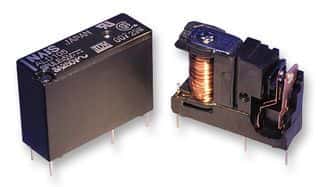

PCB-mountable signal relay featuring a 1 Form A (SPST) contact configuration. This general-purpose electromechanical relay operates with a 5VDC coil voltage and 40mA coil current, offering 200mW power consumption. Contact ratings include 3A maximum current and up to 277VAC or 30VDC. With a 10ms operate and release time, it is RoHS compliant and designed for through-hole mounting.
Sign in to ask questions about the Panasonic ALD-105 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ALD-105 technical specifications.
| Coil Current | 40mA |
| Coil Resistance | 125R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 3A |
| Contact Material | Silver, Tin |
| Depth | 7.2mm |
| Height | 15.3mm |
| Lead Free | Lead Free |
| Length | 20.5mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, PCB |
| Mounting Style | SOCKET |
| Number of Poles | 1 |
| Operate Time | 10ms |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Consumption | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | ALD |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 277V |
| Weight | 4g |
| Width | 20.5mm |
| RoHS | Compliant |
