General purpose electromechanical relay featuring a 1 Form A, SPST contact configuration. This DC input relay offers a 5A contact current rating with silver contacts and a 277VAC maximum voltage rating. Coil specifications include 24VDC, 8.3mA current, 2.88kΩ resistance, and 200mW power consumption. Operate and release times are both 10ms, with an operating temperature range of -40°C to 85°C. Through-hole mounting with straight pins and RoHS compliance are standard.
Quick Jump:
Technical Specifications
Panasonic ALDP124W technical specifications.
General
| Coil Current | 8.3mA |
| Coil Resistance | 2.88kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Depth | 7.2mm |
| Lead Free | Lead Free |
| Length | 20.5mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 277V |
| Operate Time | 10ms |
| Package Quantity | 100 |
| Packaging | Carton |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | ALDP |
| Switching Current | 5A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 277V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ALDP124W Datasheet
Download the complete datasheet for Panasonic ALDP124W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

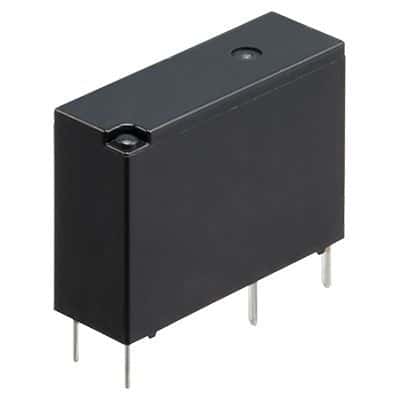

Product Images
