Technical Specifications
Panasonic ALE14B09 technical specifications.
General
Coil Current
44.4mA
Coil Power
400mW
Coil Resistance
203R
Coil Type
Non-Latching
Coil Voltage (DC)
9V
Contact Current Rating
16A
Contact Material
Tin, Silver
Lead Free
Lead Free
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
277V
Mount
Through Hole
Operate Time
20ms
Package Quantity
100
Packaging
Bulk
Power Consumption
400mW
Relay Type
General Purpose
Release Time
20ms
RoHS Compliant
Yes
Series
ALE
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Panasonic ALE14B09 Datasheet
Download the complete datasheet for Panasonic ALE14B09 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

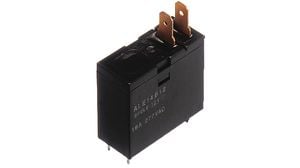

Product Images
