General purpose signal relay featuring a 24VDC non-latching coil with 37.5mA coil current and 640 Ohm coil resistance. This SPST-NO relay offers a 25A contact current rating with tin/silver contacts and a 250V AC voltage rating. Designed for through-hole PCB mounting, it has a 15ms operate and release time, 900mW power consumption, and operates within a -40°C to 60°C temperature range. The component is RoHS compliant and rated IP67.
MountingThrough Hole, PCB
Power900mW
Quick Jump:
Technical Specifications
Panasonic ALF-1P24 technical specifications.
General
| Coil Current | 37.5mA |
| Coil Resistance | 640R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 25A |
| Contact Material | Tin, Silver |
| Contact Type | 1 maker |
| Depth | 15.7mm |
| Height | 23.3mm |
| Lead Free | Lead Free |
| Length | 30.1mm |
| Max Current Rating | 25A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Operate Time | 15ms |
| Package Quantity | 50 |
| Packaging | Box |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 15ms |
| RoHS Compliant | Yes |
| Series | ALF |
| Switching Current | 20A |
| Termination | PC Pin |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 23g |
| Width | 15.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ALF-1P24 Datasheet
Download the complete datasheet for Panasonic ALF-1P24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

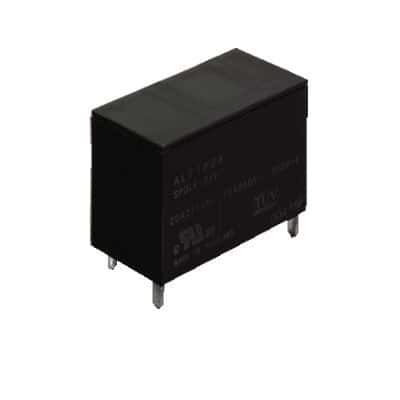

Product Images
