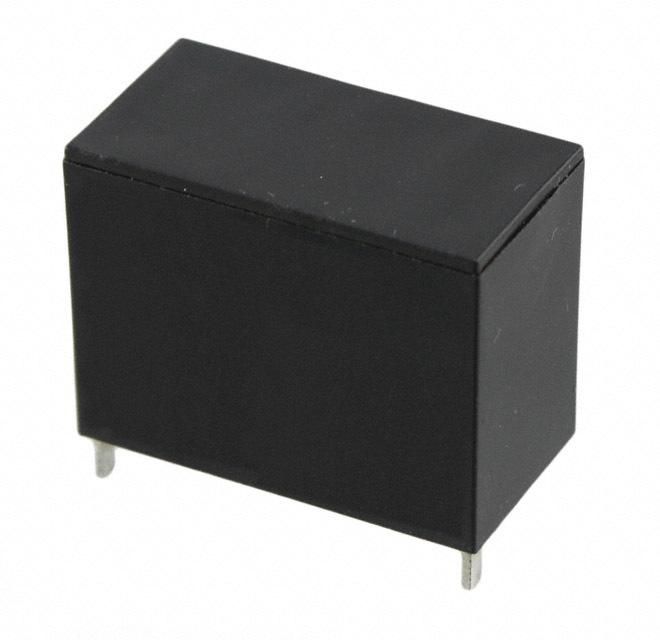

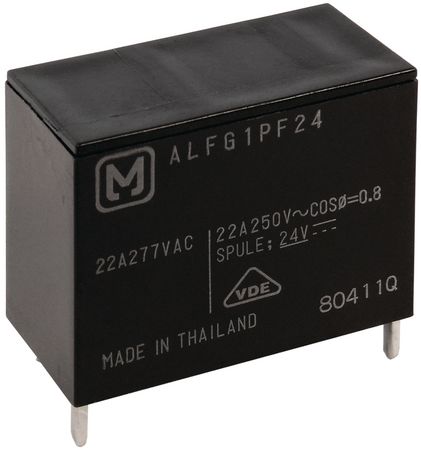

SPST-NO power relay featuring a 9VDC coil voltage and 22A switching current. This general-purpose relay offers a 25A contact current rating with Tin, Silver contact material. Designed for through-hole mounting (THT) with PC pin termination, it operates within a -40°C to 60°C temperature range and boasts an IP67 rating. Key specifications include a 1.4W coil power, 58Ω coil resistance, and a 20ms operate time.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ALFG1PF09 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ALFG1PF09 technical specifications.
| Application(s) | POWER |
| Package/Case | SMD/SMT |
| Coil Current | 155.2mA |
| Coil Power | 1.4W |
| Coil Resistance | 58R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 25A |
| Contact Material | Tin, Silver |
| Depth | 15.7mm |
| Height | 23.3mm |
| Lead Free | Lead Free |
| Length | 30.1mm |
| Life (Hours) | 1000000Hour |
| Max Current Rating | 22A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Operate Time | 20ms |
| Package Quantity | 50 |
| Packaging | Carton |
| Power Consumption | 280mW |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | ALFG |
| Switching Current | 22A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 23g |
| RoHS | Compliant |
Download the complete datasheet for Panasonic ALFG1PF09 to view detailed technical specifications.
