Technical Specifications
Panasonic ALZ51B05 technical specifications.
General
Package/Case
DIP
Coil Current
80mA
Coil Power
400mW
Coil Resistance
63R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
16A
Contact Material
Tin, Silver
Lead Free
Lead Free
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
440V
Operate Time
15ms
Package Quantity
20
Packaging
Carton
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
No
Series
ALZ
Termination
PC Pin
Throw Configuration
SPST
Weight
12g
Compliance
RoHS
Not Compliant
Datasheet
Panasonic ALZ51B05 Datasheet
Download the complete datasheet for Panasonic ALZ51B05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

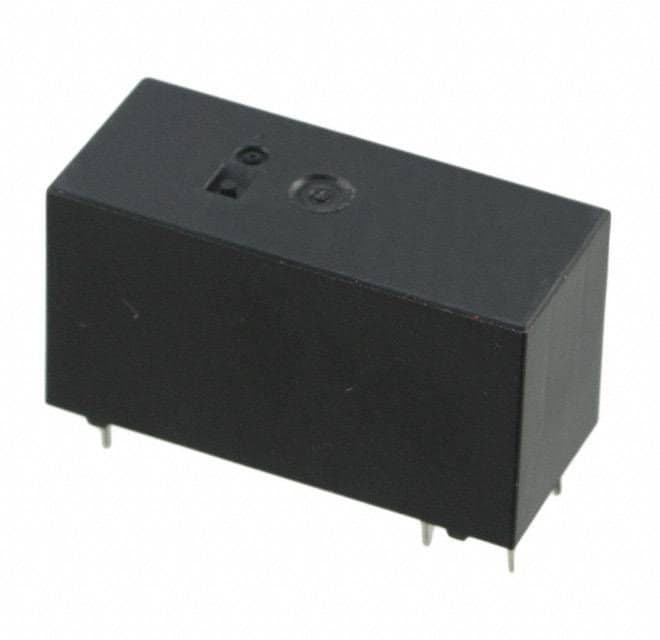

Product Images
