Surface mount solid state relay with DC input and AC/DC output. Features a 4V DC control voltage, 8.5mA forward current, and a 60mA load current rating up to 40V. Offers 500V isolation voltage and 1.5pF capacitance. Packaged in a 4-pin SSOP with gull wing termination, this RoHS compliant component is ideal for PCB applications.
PackageSOP
Capacitance1.5pF
Current Rating60mA
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic AQS221FN2S technical specifications.
General
Capacitance
1.5pF
Package/Case
SOP
Control Voltage
5.5V
Current Rating
60mA
Forward Current
8.5mA
Height
2.1mm
Input Type
DC
Isolation Voltage
500V
Isolation Voltage-Max
500V
Lead Free
Lead Free
Length
10.37mm
Load Current
60mA
Max Output Current
60mA
Max Output Voltage
40V
Max Power Dissipation
650mW
Mount
Surface Mount, PCB
On-state Resistance-Max
12.5R
Output Voltage
40V
Package Quantity
50
Packaging
Rail/Tube
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQS
Termination
Gull Wing
Throw Configuration
4PST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQS221FN2S Datasheet
Download the complete datasheet for Panasonic AQS221FN2S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

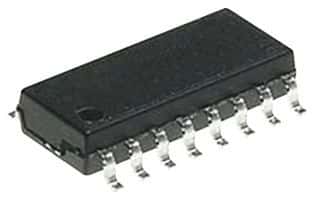

Product Images
