Solid State Relay with 4PST configuration, featuring DC input and AC/DC output. This surface mount device offers a 50mA load current capability up to 80V, with a 1.5kV isolation voltage. Operating within a -40°C to 85°C temperature range, it boasts a 35 Ohm on-state resistance and gull wing termination. The 16-pin SOP package is RoHS compliant.
PackageSOP
Resistance21R
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQS225S technical specifications.
General
Package/Case
SOP
Height
2.1mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
10.37mm
Load Current
50mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
80V
Mount
Surface Mount
On-State Resistance
35R
Output Current
50mA
Output Voltage
80V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
Resistance
21R
RoHS Compliant
Yes
Series
PhotoMOS™ AQS
Termination
Gull Wing
Throw Configuration
4PST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQS225S Datasheet
Download the complete datasheet for Panasonic AQS225S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

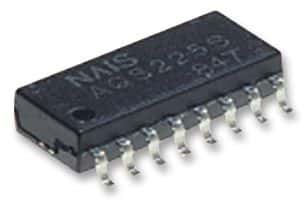

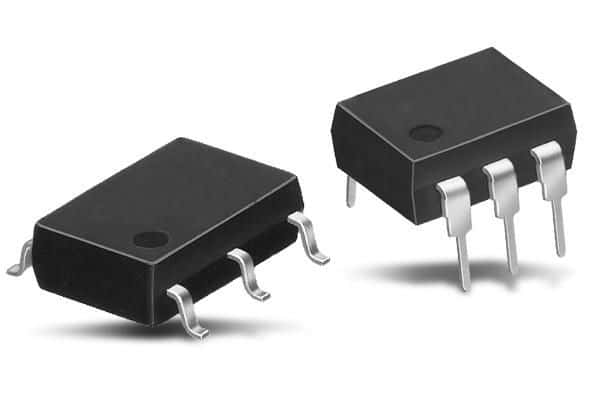

Product Images
