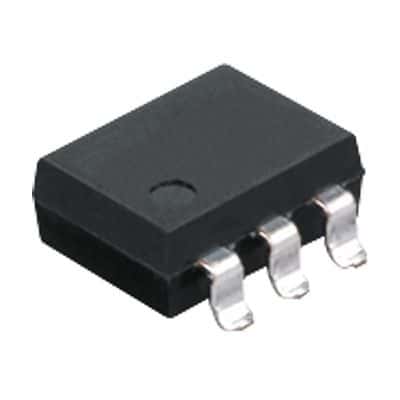

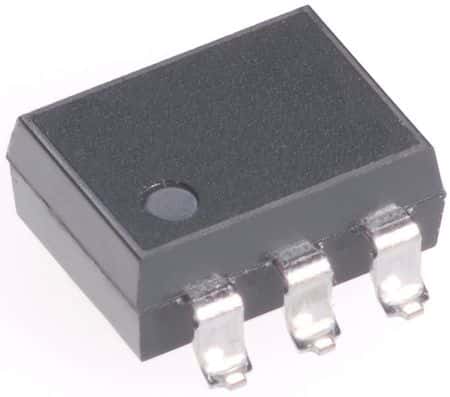

AC & DC Output Solid State Relay featuring a 50mA DC input and 500mA DC output capability. This 6-pin DIP SMD component offers a 60V DC output voltage rating and a 1.5kV test voltage. With a 5ms turn-on delay and a maximum power dissipation of 550mW, it operates within a temperature range of -40°C to 85°C. Approvals include VDE and cULus, and it is RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQV112KLA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQV112KLA technical specifications.
| Approvals | VDE, cULus |
| Capacitance | 1.5pF |
| Package/Case | SMD/SMT |
| Current Rating | 500mA |
| Depth | 6.4mm |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 60V |
| Max Power Dissipation | 550mW |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | AQV |
| Termination | Gull Wing |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Turn-On Delay Time | 5ms |
| DC Rated Voltage | 60V |
| Width | 6.4mm |
| RoHS | Compliant |
