Surface mount solid-state relay with DC input and AC/DC output. Features a 50mA DC input current, 130mA maximum output current, and 350V maximum output voltage. Offers 5kV isolation voltage and operates within a -40°C to 85°C temperature range. This SPST relay has a 25 Ohm on-state resistance and is packaged in a 6-pin PDIP SMD with gull wing termination.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV210HLA technical specifications.
General
Package/Case
SMD/SMT
Height
3.6mm
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Length
8.8mm
Load Current
130mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
130mA
Max Output Voltage
350V
Max Power Dissipation
550mW
Mount
Surface Mount
On-State Resistance
25R
On-state Resistance-Max
25R
Output Current
130mA
Output Voltage
350V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
Gull Wing
Throw Configuration
SPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQV210HLA Datasheet
Download the complete datasheet for Panasonic AQV210HLA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

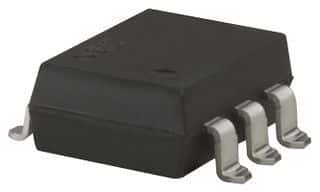

Product Images
