Surface mount solid state relay featuring DC input and AC/DC output. This SPST relay offers a 50mA input current and a 120mA load current capability, with a maximum output voltage of 350V. It provides 1.5kV isolation voltage and operates within a -40°C to 85°C temperature range. The component is housed in a 6-pin SOP package with gull wing termination and is RoHS compliant.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV210SZ technical specifications.
General
| Package/Case | SOP |
| Height | 2.1mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Mount | Surface Mount |
| On-state Resistance-Max | 35R |
| Output Current | 120mA |
| Output Voltage | 350V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV210SZ Datasheet
Download the complete datasheet for Panasonic AQV210SZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

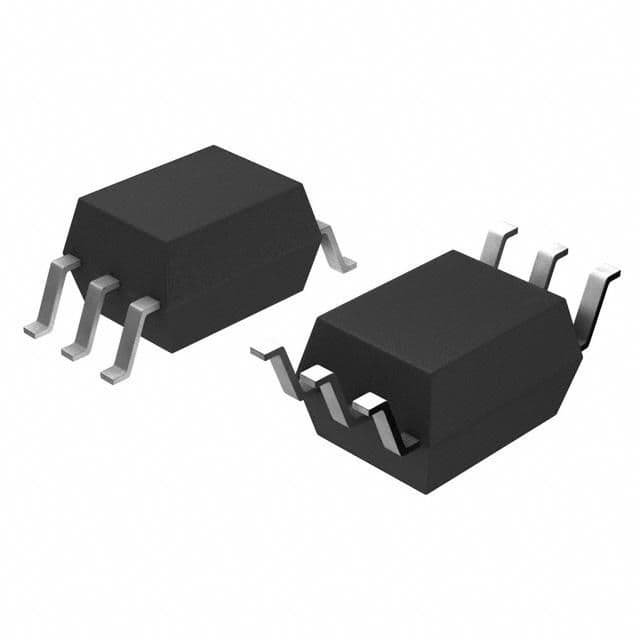

Product Images
