Surface mount solid state relay with DC input and AC/DC output. Features 50mA input current, 80mA load current, and a 40V maximum output voltage. Offers 1.5kV isolation voltage and operates within a -20°C to 80°C temperature range. This SPST relay is RoHS compliant and packaged in tape and reel.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV221AZ technical specifications.
General
Package/Case
SMD/SMT
Height
3.6mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
8.8mm
Load Current
80mA
Max Input Current
50mA
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Output Current
80mA
Max Output Voltage
40V
Max Power Dissipation
280mW
Mount
Surface Mount
On-State Resistance
35R
On-state Resistance-Max
35R
Output Current
80mA
Output Voltage
40V
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
Gull Wing
Throw Configuration
SPST
Width
6.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQV221AZ Datasheet
Download the complete datasheet for Panasonic AQV221AZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

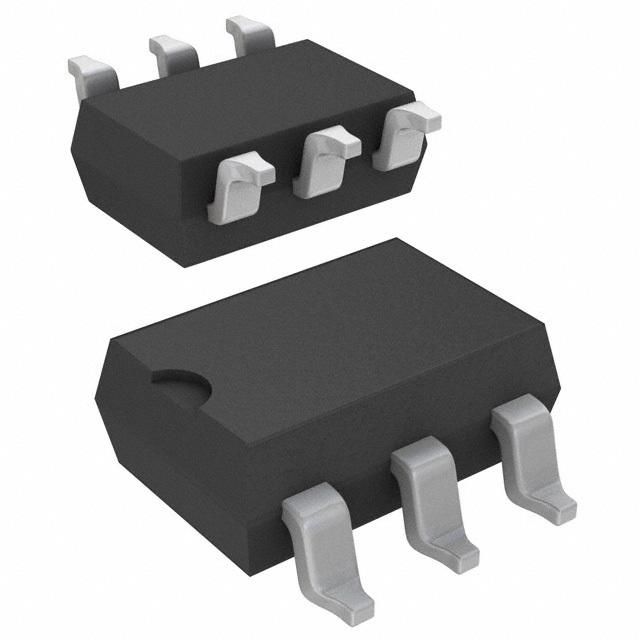

Product Images
