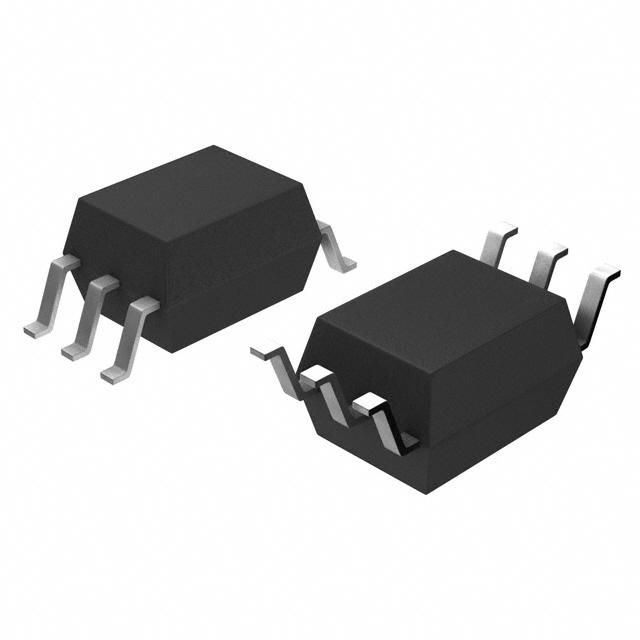

The Panasonic AQV254S is a solid state relay with a maximum isolation voltage of 1.5kV and an on-state resistance of 16 ohms. It is available in a surface mount SOP package and is rated for a maximum load current of 150mA. The relay is part of the PhotoMOS AQV series and is packaged in a rail or tube format with 75 units per package. It is lead free and suitable for use in a variety of applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQV254S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQV254S technical specifications.
| Package/Case | SOP |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Load Current | 150mA |
| Mount | Surface Mount |
| On-State Resistance | 16R |
| On-state Resistance-Max | 16R |
| Output Voltage | 400V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| RoHS | Compliant |
