Surface mount solid-state relay (SSR) with SPST-NC configuration, designed for AC and DC output. Features a 120mA load current capability and a 400V maximum output voltage. Operates with a 50mA DC input current and offers 1.5kV isolation voltage. This RoHS compliant component is housed in an SMD/SMT package with gull wing termination, suitable for surface mounting.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQV414EA technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Mount | Surface Mount |
| On-state Resistance-Max | 50R |
| Output Current | 120mA |
| Output Voltage | 400V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQV |
| Termination | Gull Wing |
| Test Voltage | 1.5kV |
| Throw Configuration | SPST |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQV414EA Datasheet
Download the complete datasheet for Panasonic AQV414EA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

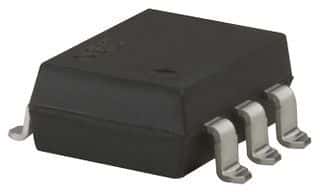

Product Images
