Surface mount solid state relay with DC input and AC/DC output. Features a 350V maximum output voltage and 120mA output current. Offers 1.5kV isolation voltage and 35 Ohms on-state resistance. Packaged in a 8-pin SOP with gull wing termination, suitable for tape and reel packaging. Operates across a -40°C to 85°C temperature range.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQW210TSX technical specifications.
General
Package/Case
SOP
Height
2.1mm
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
9.37mm
Load Current
120mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
350V
Mount
Surface Mount
On-State Resistance
35R
Output Current
120mA
Output Voltage
350V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQW
Termination
Gull Wing
Throw Configuration
SPST
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQW210TSX Datasheet
Download the complete datasheet for Panasonic AQW210TSX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

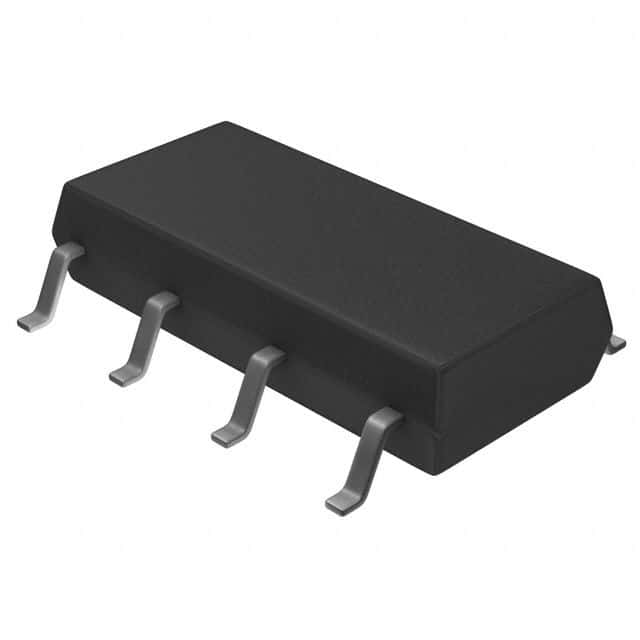

Product Images
