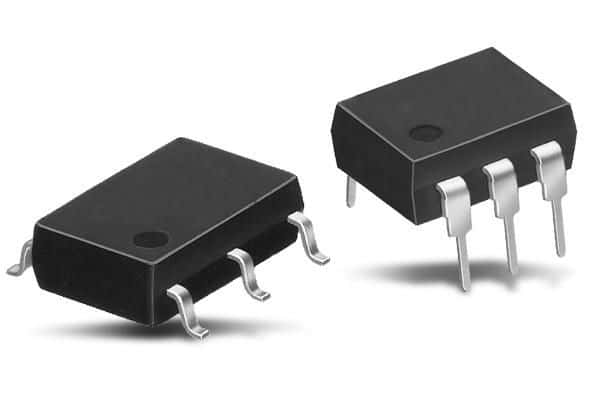

Surface mount solid-state relay featuring DC input and AC/DC output. Delivers 120mA at 80V with 50mA input current and 1.5kV isolation. Operating temperature range spans -40°C to 85°C. This RoHS compliant component is supplied in PDIP SMD packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQW225NA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQW225NA technical specifications.
| Package/Case | SMD/SMT |
| Height | 3.6mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 9.78mm |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 80V |
| Mount | Surface Mount |
| On-State Resistance | 10R |
| Output Current | 120mA |
| Output Voltage | 80V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQW |
| Termination | Gull Wing |
| Throw Configuration | DPST, SPST |
| Width | 6.4mm |
| RoHS | Compliant |
