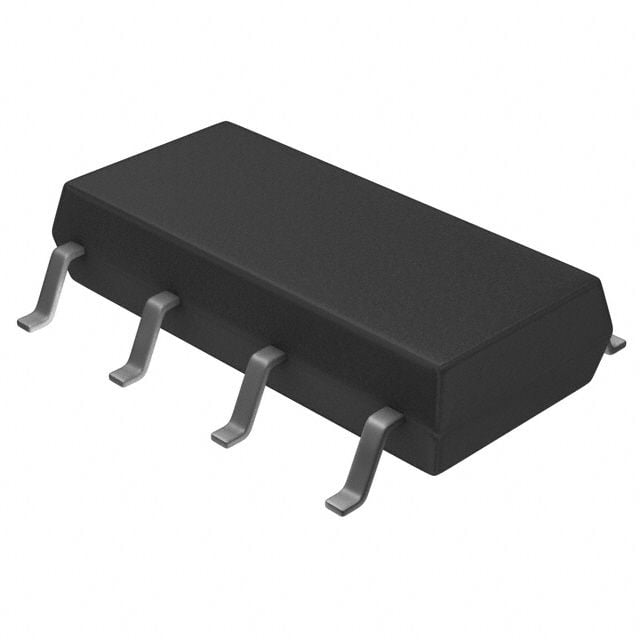

The Panasonic AQW414S is a solid state relay with a SOP package, rated for a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has an on-state resistance of 50R and a maximum power dissipation of 650mW. The relay is RoHS compliant and lead free, and is packaged in a rail or tube with 50 units per package. It is a DPST type relay with a gull wing termination and a surface mount package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQW414S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQW414S technical specifications.
| Package/Case | SOP |
| Height | 2.1mm |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Length | 9.37mm |
| Load Current | 80mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 650mW |
| Mount | Surface Mount |
| On-State Resistance | 50R |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQW |
| Termination | Gull Wing |
| Throw Configuration | DPST |
| Width | 4.4mm |
| RoHS | Compliant |
