AC & DC Output Solid State Relay (SSR) with SPST configuration. Features a 350V AC voltage rating and 130mA load current. Operates with a 1.2mA forward current and 50mA input current. Offers 5kV isolation voltage and a compact SMD/SMT package with gull wing termination. RoHS compliant and operates within a -40°C to 85°C temperature range.
PackageSMD/SMT
Current Rating130mA
Quick Jump:
Technical Specifications
Panasonic AQY-210EHA technical specifications.
General
| Package/Case | SMD/SMT |
| Current Rating | 130mA |
| Forward Current | 1.2mA |
| Height | 2.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Load Current | 130mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 130mA |
| Max Output Voltage | 350V |
| On-state Resistance-Max | 25R |
| Output Current | 130mA |
| Output Voltage | 350V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 350V |
| Width | 4.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY-210EHA Datasheet
Download the complete datasheet for Panasonic AQY-210EHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

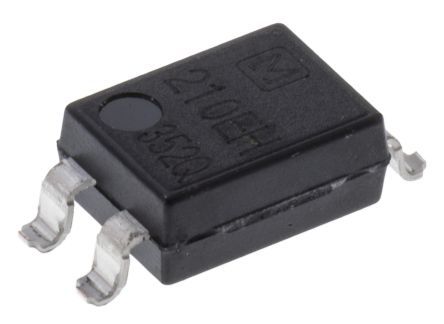

Product Images
