AC/DC output solid-state relay featuring a 1A maximum output current and 30V maximum output voltage. This SPST relay operates with a 50mA DC input current and offers 5kV isolation voltage. Packaged in a 4-pin DIP SMD with gull wing termination, it supports a load current of 1A and has an on-state resistance of 500mR. Operating temperature range is -40°C to 85°C, with a maximum power dissipation of 550mW.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Panasonic AQY-211EHA technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 2.9mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Load Current | 1A |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 30V |
| Max Power Dissipation | 550mW |
| On-state Resistance-Max | 500mR |
| Output Current | 1A |
| Output Voltage | 30V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Test Voltage | 5kV |
| Throw Configuration | SPST |
| Width | 4.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY-211EHA Datasheet
Download the complete datasheet for Panasonic AQY-211EHA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

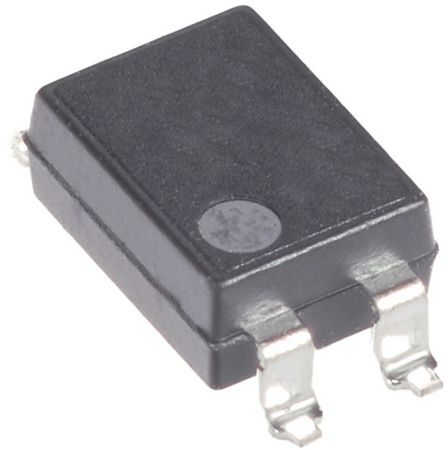

Product Images
