PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY210KSJ technical specifications.
General
Package/Case
SOP
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
350V
Mount
Surface Mount
Output Current
120mA
Packaging
Rail/Tube
Radiation Hardening
No
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY210KSJ Datasheet
Download the complete datasheet for Panasonic AQY210KSJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

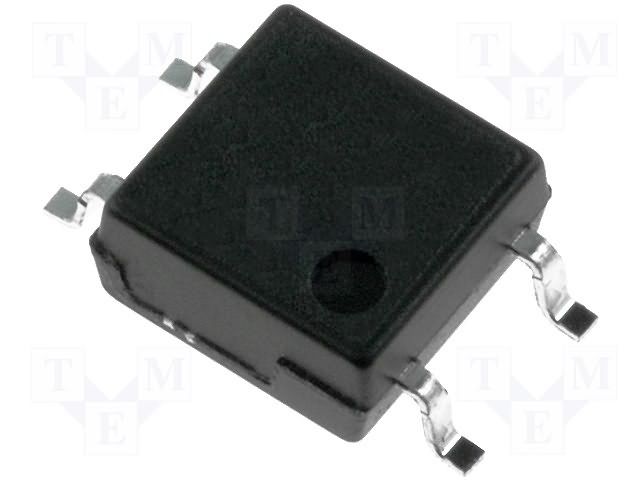

Product Images
