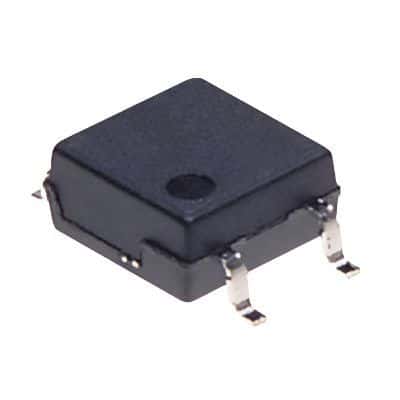

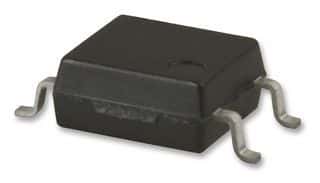

Surface mount Solid State Relay (SSR) with SPST-NO configuration, featuring a 1.6A AC/DC output load capability up to 40V. DC input requires 50mA for operation, with 1.5kV isolation voltage. Operating temperature range spans -40°C to 85°C. Packaged in a compact SOP case with gull wing termination, ideal for automated assembly.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic AQY211G2SX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic AQY211G2SX technical specifications.
| Package/Case | SOP |
| Height | 2.1mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 1.6A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 40V |
| Mount | Surface Mount |
| Output Current | 1.6A |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.3mm |
| RoHS | Compliant |
