AC/DC output solid state relay featuring DC input and SPST configuration. This surface mountable component offers a 150mA maximum output current at 25V AC/DC, with a 3mA typical input current and 50mA maximum input current. It provides 1.5kV isolation voltage and operates within a -40°C to 85°C temperature range. The SSOP package measures 4.45mm L x 2.65mm W x 1.8mm H, with a maximum on-state resistance of 7.5 Ohms.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY221N3VY technical specifications.
General
Package/Case
SSOP
Height
1.8mm
Input Current
3mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Length
4.45mm
Load Current
150mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Output Voltage
25V
Max Power Dissipation
300mW
Mount
Surface Mount
On-state Resistance-Max
7.5R
Output Current
150mA
Output Voltage
25V
Package Quantity
3500
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
PhotoMOS™ AQY
Termination
SMD/SMT
Throw Configuration
SPST
Width
2.65mm
Compliance
RoHS
Compliant
Datasheet
Panasonic AQY221N3VY Datasheet
Download the complete datasheet for Panasonic AQY221N3VY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

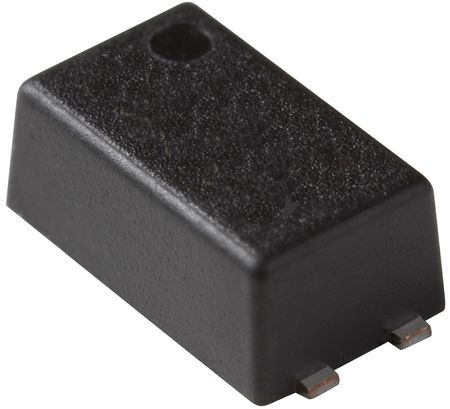

Product Images
