AC/DC output solid-state relay featuring a 4-pin Mini-SSOP package for surface mounting. This relay offers a 250mA maximum output current and 40V maximum output voltage, with a low 1.25 Ohm on-state resistance. It operates with a DC input voltage up to 1.5V and requires a 3mA forward current for activation, with a maximum input current of 50mA. Isolation voltage is rated at 1.5kV, and the component operates within a temperature range of -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AQY221R2VY technical specifications.
General
| Package/Case | SSOP |
| Forward Current | 900uA |
| Height | 1.8mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Load Current | 250mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 40V |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| On-State Resistance | 1.25R |
| On-state Resistance-Max | 1.25R |
| Output Current | 250mA |
| Output Voltage | 40V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
| Width | 2.65mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY221R2VY Datasheet
Download the complete datasheet for Panasonic AQY221R2VY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

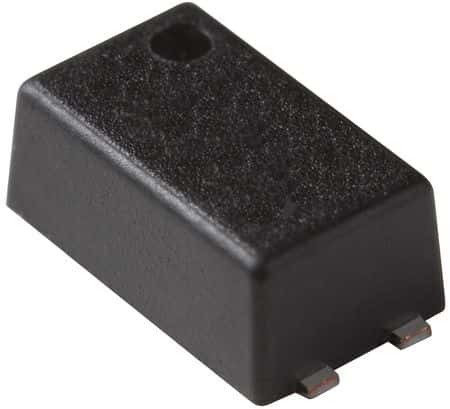

Product Images
