AC/DC output solid-state relay featuring a 350mA load current and 80V maximum output voltage. This surface-mount device offers a 50mA DC input current and 1.5kV isolation voltage. With a 0.75ms turn-on delay and 1.2 Ohm maximum on-state resistance, it operates within a -40°C to 85°C temperature range. The 4-pin SOP package with gull wing termination ensures reliable PCB mounting.
PackageSOP
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Panasonic AQY225R1S technical specifications.
General
| Package/Case | SOP |
| Depth | 4.4mm |
| Forward Current | 500uA |
| Height | 2mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Isolation Voltage-Max | 1.5kV |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Load Current | 350mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 350mA |
| Max Output Voltage | 80V |
| Mount | Surface Mount, PCB |
| On-state Resistance-Max | 1.2R |
| Output Current | 350mA |
| Output Voltage | 80V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PhotoMOS™ AQY |
| Termination | Gull Wing |
| Test Voltage | 500V |
| Throw Configuration | SPST |
| Turn-On Delay Time | 0.75ms |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AQY225R1S Datasheet
Download the complete datasheet for Panasonic AQY225R1S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

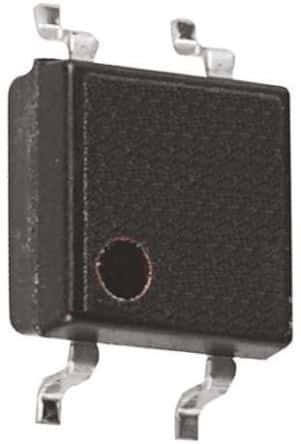

Product Images
